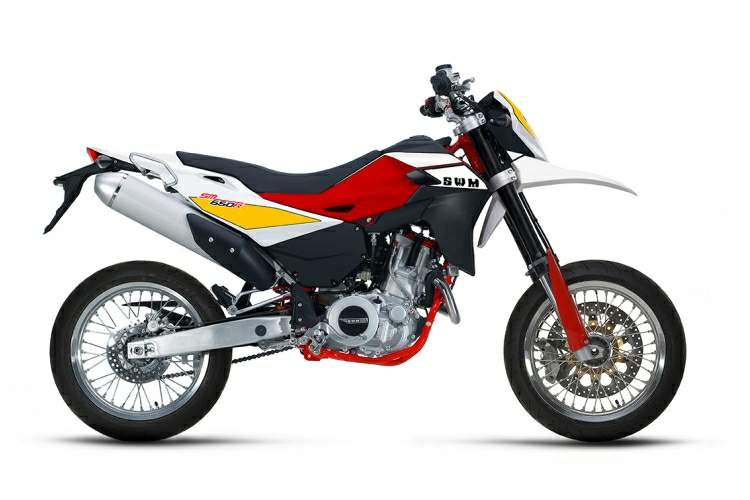

SWM SM 650 R
Ročník 2015
Špecifikácia parametrov a technické údaje
- Značka
- SWM
- Model
- SM 650 R
- Ročník
- 2015
- Motor
- Single cylinder, four stroke, DOHC, 4 valve
- Objem
- 600 cc / 36.6 cu in
- Vŕtanie × zdvih
- 100 x 76.5 mm
- Chladenie
- Liquid cooled
- Kompresný pomer
- 12.9:1
- Mazanie
- Dry sump with 2 oil pumps and cartridge filter
- Nasávanie
- EFI, Mikuni D45
- Zapaľovanie
- Electronic, inductive discharge, with adjustable advance (digital control)
- Štartovanie
- Electric with automatic decompressor
- Spojka
- Wet, multiplate, hydraulic control
- Prevodovka
- 6-Speed, constant mesh
- Finálny pohon
- Chain
- Rám
- High strength steel single beam double cradle main frame; rear frame in light alloy
- Predné odpruženie
- Upside-down telescopic hydraulic fork with forward axle; compression and rebound damping adjustment, Kayaba
- Zdvih predného kolesa
- 250 mm / 9.8 in
- Zadné odpruženie
- Progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment, compression and rebound damping adjustment (compression high & low speed), Kayaba
- Zdvih zadného kolesa
- 290 mm / 11.4 in
- Predné brzdy
- Ø320 mm Fixed disc with radial caliper
- Zadné brzdy
- Ø240 mm Floating disc, with hydraulic control and floating caliper
- Predná pneumatika
- 120/70-17"" Michelin Pilot Power 2CT
- Zadná pneumatika
- 150/60-17" Michelin Pilot Power 2CT
- Predný disk
- 3.50 x 17"
- Zadný disk
- 4.25 x 17"
- Stopa
- 83.8 mm / 3.3 in
- Rázvor
- 1496 mm / 58.9 in
- Svetlá výška
- 241 mm / 9.5 in
- Výška sedadla
- 909 mm / 35.8 in
- Suchá hmotnosť
- 147 kg / 324 lbs
- Objem nádrže
- 12 L / 3.2 US gal
