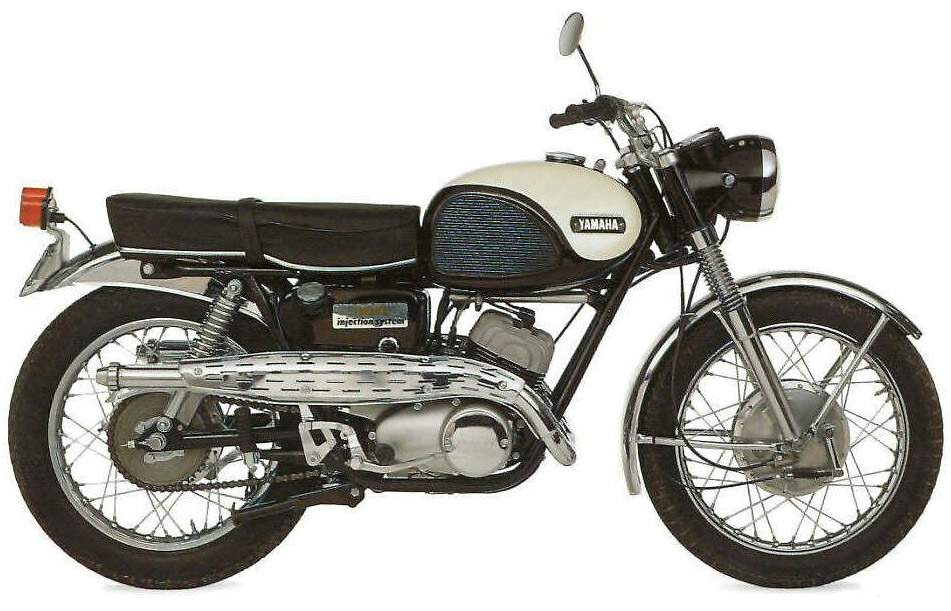

Yamaha YDS-3C
Ročník 1966 - 1967
Špecifikácia parametrov a technické údaje
- Značka
- Yamaha
- Model
- YDS-3C
- Ročník
- 1966 - 1967
- Motor
- Two stroke, piston-port, parallel twin, Crankshaft supported in four roller bearings; needle-roller small-end and big-end bearings. Light-alloy cylinder head;
- Objem
- 247 cc / 15.0 cu-in
- Vŕtanie × zdvih
- 56 x 50 mm
- Chladenie
- Air-cooled
- Kompresný pomer
- 7.5;1
- Nasávanie
- 2x Mikunis VM24SC with air filter. Direct-operating, coupled air slides.
- Zapaľovanie
- Generator
- Štartovanie
- Kick
- Max. výkon
- 24 hp @ 7500 rpm
- Točivý moment
- 18.1 ft-lb 4.2 kgf-m @ 7500 rpm
- Spojka
- Wet, multi-plate clutch mounted on left side of crankshaft
- Prevodovka
- 5 Speed Helical-gear primary drive. Rear chain % x %in with top guard. Engine rpm at 30 mph in top gear, approximately 2,500.
- Finálny pohon
- Chain
- Predné odpruženie
- Telescopic forks with hydraulic damping.
- Zadné odpruženie
- Dual shocks swinging arm, Pivoted rear fork controlled by spring-and-hydraulic units with three-position adjustment for load.
- Predné brzdy
- Drum
- Zadné brzdy
- Drum
- Predná pneumatika
- 3.00 -18
- Zadná pneumatika
- 3.25 -18
- Rázvor
- 1470.5 mm / 51.9 in
- Pohotovostná hmotnosť
- 145 kg / 320 lbs
- Objem nádrže
- 11.4 Litres / 3.0 gal
