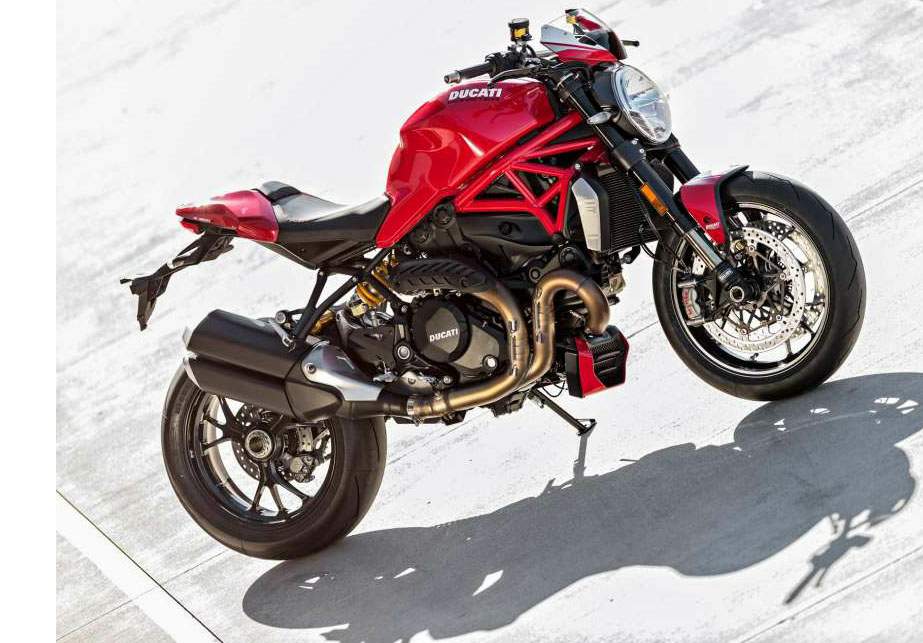

Ducati Monster 1200R
Ročník 2017 - 2018
Špecifikácia parametrov a technické údaje
- Značka
- Ducati
- Model
- Monster 1200R
- Ročník
- 2017 - 2018
- Motor
- Four stroke, Testastretta 11° L-Twin, DOHC, 4 Desmodromically actuated valves per cylinder
- Objem
- 1198 cc / 73.1 cu-in
- Vŕtanie × zdvih
- 106 x 67.9 mm
- Chladenie
- Liquid cooled
- Kompresný pomer
- 13.0:1
- Mazanie
- Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
- Nasávanie
- Synerject-Continental electronic fuel injection system, elliptical throttle body Ø 56 mm equivalent with full Ride-by-Wire
- Zapaľovanie
- Marelli electronic
- Štartovanie
- Electric
- Max. výkon
- 113.3 kW / 152 hp @ 9250 rpm
- Točivý moment
- 131.4 Nm 13.4 kgf-m / 97 lb-ft @ 7750 rpm
- Spojka
- Wet, multi-plate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
- Prevodovka
- 6 Speed
- Finálny pohon
- Chain, front sprocket 15; rear sprocket 41
- Rám
- Tubular steel Trellis frame attached to the cylinders head
- Predné odpruženie
- Ohlins fully adjustable 48 mm usd forks
- Zdvih predného kolesa
- 130 mm /5.1 in
- Zadné odpruženie
- Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm
- Zdvih zadného kolesa
- 159 mm / 6.2 in
- Predné brzdy
- 2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc evo M50 4-piston callipers, radial pump with ABS as standard
- Zadné brzdy
- Single 245mm disc, 2-piston floating calliper with ABS as standard equipment
- Predná pneumatika
- 120/70 - ZR17 Pirelli Diablo Supercorsa SP
- Zadná pneumatika
- 200/55 - ZR17 Pirelli Diablo Supercorsa SP
- Uhol vidlice
- 24.3°
- Stopa
- 89 mm / 3,5 in
- Rázvor
- 1509 mm / 59.4 in
- Výška sedadla
- 830 mm / 32,7 in
- Suchá hmotnosť
- 180 kg / 396,8 lbs
- Pohotovostná hmotnosť
- 207 kg / 456,3 lbs
- Objem nádrže
- 17.5 Litres / 4.6 US gal / 3.8 Imp gal
