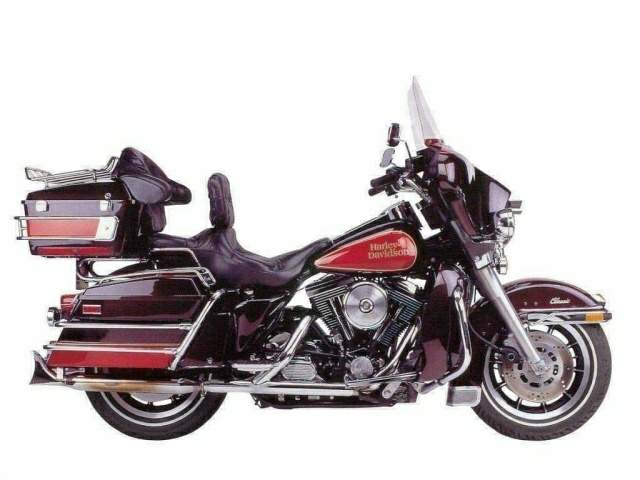

Harley Davidson FLHTC Electra Glide Classic
Ročník 1994 - 1998
Špecifikácia parametrov a technické údaje
- Značka
- Harley Davidson
- Model
- FLHTC Electra Glide Classic
- Ročník
- 1994 - 1998
- Motor
- Four stroke, 45° V-Twin, Twin Cam 88® vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
- Objem
- 1449 cc / 88.4 cu-in
- Vŕtanie × zdvih
- 95.3 x 101.6 mm
- Chladenie
- Air cooled
- Kompresný pomer
- 8.9:1
- Mazanie
- Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10ì pressurized oil filter
- Nasávanie
- Carburetion 40 mm constant velocity with enrichener and accelerator pump
- Zapaľovanie
- Single-fire, non-wasted, map-controlled spark ignition
- Štartovanie
- Electric
- Max. výkon
- 67 hp / 48.8 kW @ 5200 rpm
- Točivý moment
- 116.6 Nm / 86 lb-ft @ 3500rpm
- Spojka
- Wet 9-plate
- Prevodovka
- 5 Speed
- Finálny pohon
- Belt
- Rám
- Mild steel; square-section backbone with twin downtubes Swing Arm Mild steel, rectangular section
- Predné odpruženie
- Cartridge style damping
- Zadné odpruženie
- Air-adjustable
- Predné brzdy
- 2x 292mm discs 4 piston calipers
- Zadné brzdy
- Single 292mm disc 4 piston caliper
- Predná pneumatika
- MT90-16T
- Zadná pneumatika
- MT90-16
- Uhol vidlice
- 26°
- Stopa
- 157.5 mm / 6.2 in
- Rázvor
- 1612.9 mm / 63.5 in
- Výška sedadla
- 692 mm / 27.2 in
- Suchá hmotnosť
- 352 kg / 776 lb
- Objem nádrže
- 19 Litres / 5.0 US gal
