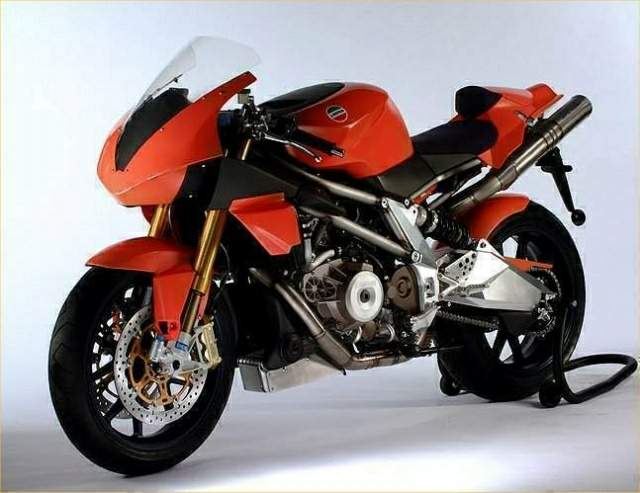

Laverda SFC 1000 Prototype
Ročník 2003
Špecifikácia parametrov a technické údaje
- Značka
- Laverda
- Model
- SFC 1000 Prototype
- Ročník
- 2003
- Motor
- Four stroke, Longitudinal 60° V twin, DOHC, 4 valves per cylinder.
- Objem
- 997.6 cc /
- Vŕtanie × zdvih
- 97 x 67.5 mm
- Chladenie
- Liquid cooling
- Kompresný pomer
- 11.8:1
- Nasávanie
- Multi-point electronic injection. 57 mm diameter throttle bodies.
- Zapaľovanie
- Integrated engine management system with digital electronic ignition
- Štartovanie
- Electric
- Max. výkon
- 98 kW / 133 hp @ 9500 rpm
- Točivý moment
- 105 Nm / 77.4 lb-ft @ 7500 rpm
- Prevodovka
- 6 Speed
- Finálny pohon
- Chain
- Predné odpruženie
- 43 mm Öhlins titanium nitride coated upside-down fork. 120 mm wheel travel. External adjustment system for rebound, compression and preload.
- Zadné odpruženie
- Aluminium alloy swing-arm: Öhlins Racing hydraulic monoshock with piggy-back cylinder installed on the left hand side of the swinging arm, rebound, compression, preload adjustable, 135mm wheel travel
- Predné brzdy
- 2x 320mm discs 4 piston calipers
- Zadné brzdy
- Single 220mm disc 2 piston caliper
- Predná pneumatika
- 120/70 ZR 17
- Zadná pneumatika
- 190/50 ZR 17
