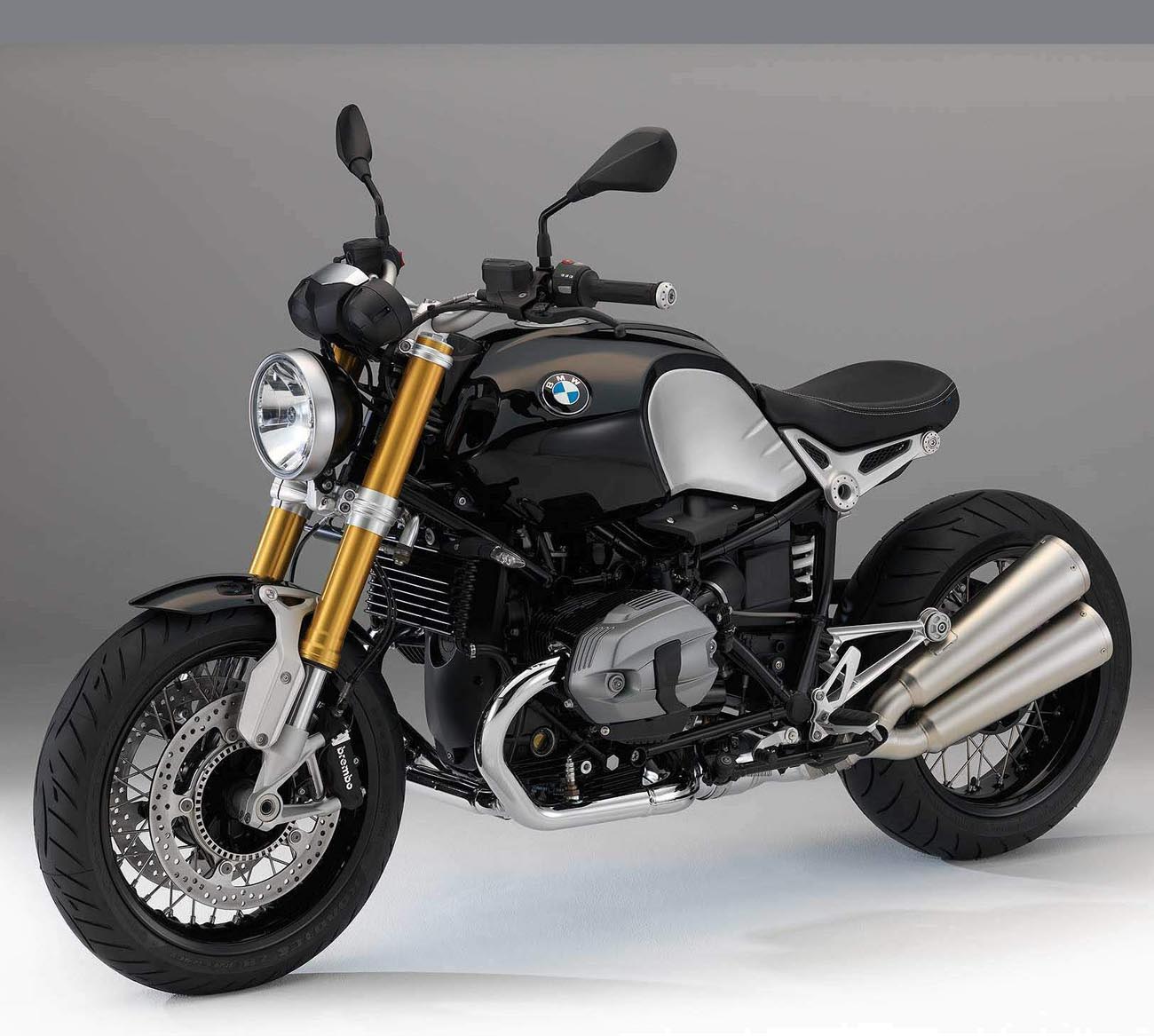

BMW R nineT

Špecifikácia parametrov a technické údaje

Značka

BMW

Model

R nineT

Ročník

2016 - 2017

Motor

Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.

Objem

1170 cc / 71.4 cub in.

Vŕtanie × zdvih

101 x 73 mm

Chladenie

Air/Oil cooled

Kompresný pomer

12.0:1

Mazanie

Wet sump

Štartovanie

Electric

Max. výkon

81 kW / 110 hp @ 7550 rpm

Točivý moment

119 Nm / 12.1 kgf-m / 88 lb-ft @ 6000 rpm

Spojka

Single dry plate clutch, hydraulically operated

Prevodovka

Constant mesh 6-speed

Finálny pohon

Shaft

Rám

Four-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use

Predné odpruženie

Upside-Down telescopic fork with 46 mm diameter

Zdvih predného kolesa

120 mm / 4.7 in

Zadné odpruženie

Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable

Zdvih zadného kolesa

120 mm / 4.7 in

Predné brzdy

2 x ∅320mm floating brake discs, 4 piston radial calipers

Zadné brzdy

Single ∅265mm disc, 2 piston floating caliper

Predná pneumatika

120/70 - ZR17

Zadná pneumatika

180/55 - ZR17

Uhol vidlice

102.5 mm / 4.04 in

Uhol hlavy riadenia

64.5 °

Rázvor

1470 mm / 58.1 in

Výška sedadla

784.8 mm / 30.9 in Standard

Objem nádrže

18
